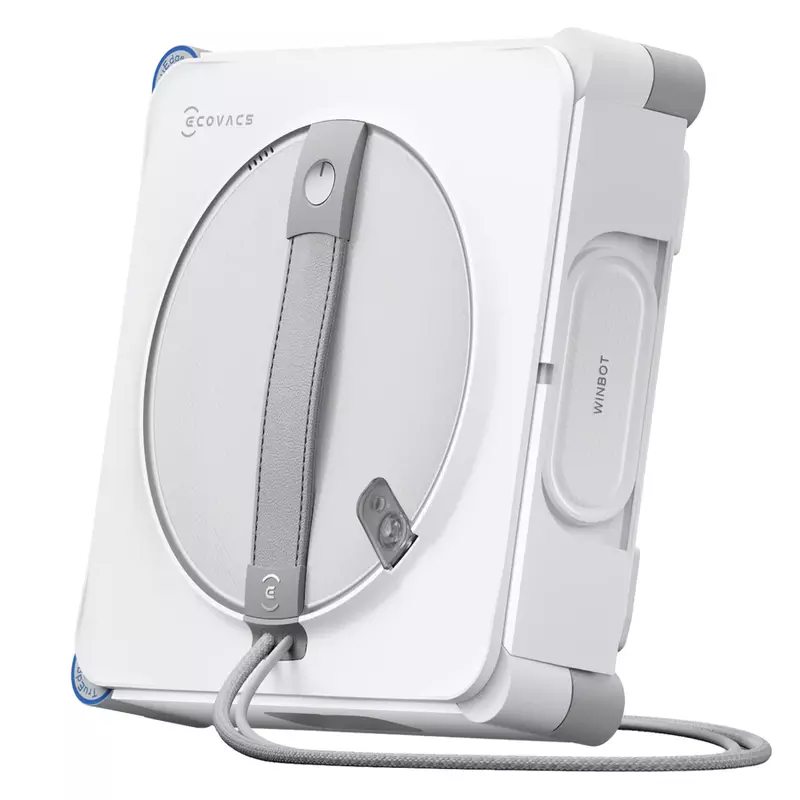

Ecovacs WINBOT MINI Smart Window Cleaner - Ultra-Thin, 7,500 Pa Suction

WINBOT MINI is engineered to adapt to virtually any window—even the narrowest.

With a highly integrated internal structure and a streamlined exterior, it’s smaller, thinner, and perfectly suited for a wide range of window-cleaning scenarios.

It navigates tight spaces with ease and ensures no blind spots are left behind.

Despite its slim and lightweight build, it delivers powerful cleaning performance, is simple to operate, and offers complete peace of mind—all in a compact package that delivers crystal-clear results.

With WINBOT MINI, ECOVACS introduces its most compact robotic window cleaner yet.
It’s 30% thinner and 37% smaller than its predecessor.
This feat of engineering was achieved through a highly integrated internal structure that maximises space efficiency.
A bumperless design trims 28 mm from the body, optimised dual air ducts reduce thickness by 3 mm, and a newly developed compact fan contributes to a smaller, lighter build.
Measuring just 215 mm on each side and 55 mm thick, WINBOT MINI is ideally sized to clean narrow windows and hard-to-reach areas.

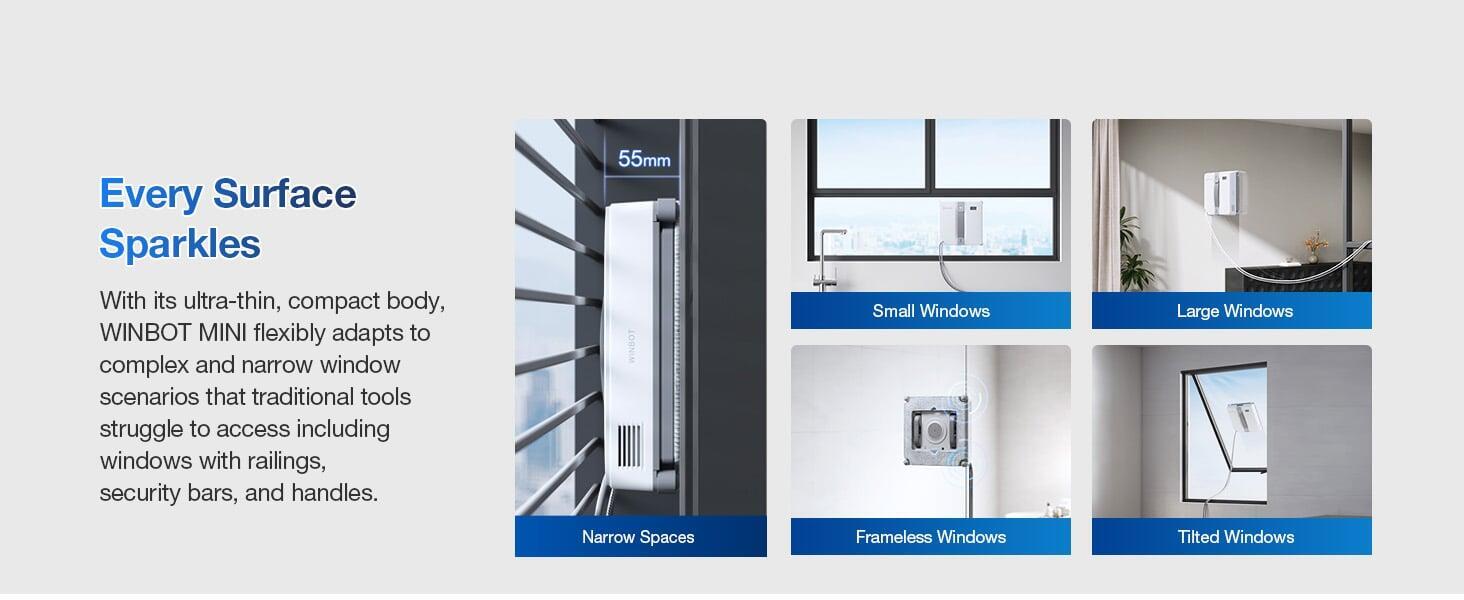

The compact, slim, and lightweight form of WINBOT MINI offers unparalleled flexibility, allowing it to reach areas other robotic cleaners cannot.
It handles windows with guardrails and security bars, small panes with one side under 30 cm, and even windows with handles—where the space between handle and glass is just 50–80 mm.
Its reduced size makes navigating complex window structures common in modern homes much easier.
Users benefit from improved cleaning efficiency and reduced risk of accidents compared to manual cleaning methods.

Thanks to its compact dimensions and lightweight build, WINBOT MINI is easy to store and carry, saving valuable space in the home. Its portability makes it convenient to share between family members or households.

Experience spotless windows with WINBOT MINI’s advanced Ultrasonic Atomisation Spray.
This feature emits ultra-fine mist particles just 10 micrometres in size that envelop dust and dirt, loosening debris for easy removal.
It ensures even spray coverage across the surface, using less water than traditional methods and providing a gentler, more efficient clean that protects your windows.

By removing traditional bumper rails, WINBOT MINI allows its cleaning cloth to adhere closely to the glass surface, achieving an impressive 99.5% coverage—including hard-to-reach edges and corners. Stubborn dirt in tight spaces is no longer a challenge.

WINBOT MINI’s reusable cleaning cloth delivers sparkling, streak-free results.
It easily tackles stubborn stains and has excellent dust-absorption properties, trapping particles and preventing residue.
With a 400% water-locking rate, the cloth retains moisture effectively to enhance cleaning performance while reducing solution usage.

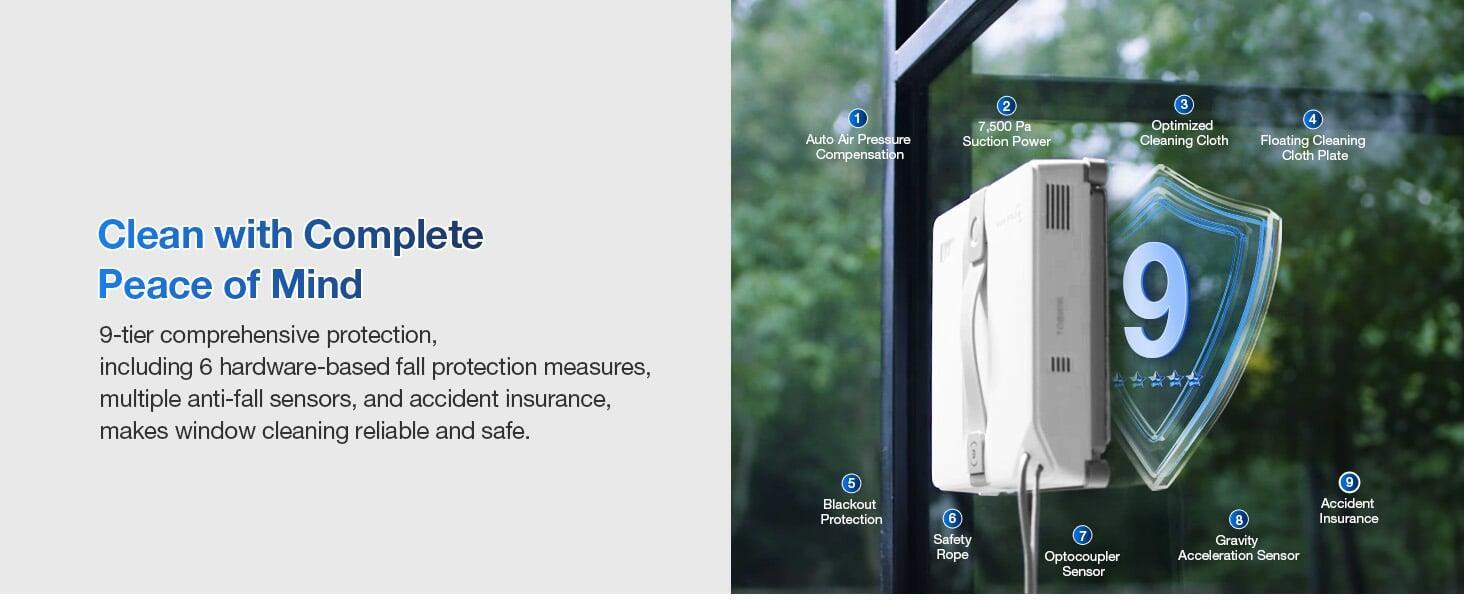

Safety is paramount. WINBOT MINI incorporates six robust fall-prevention features:

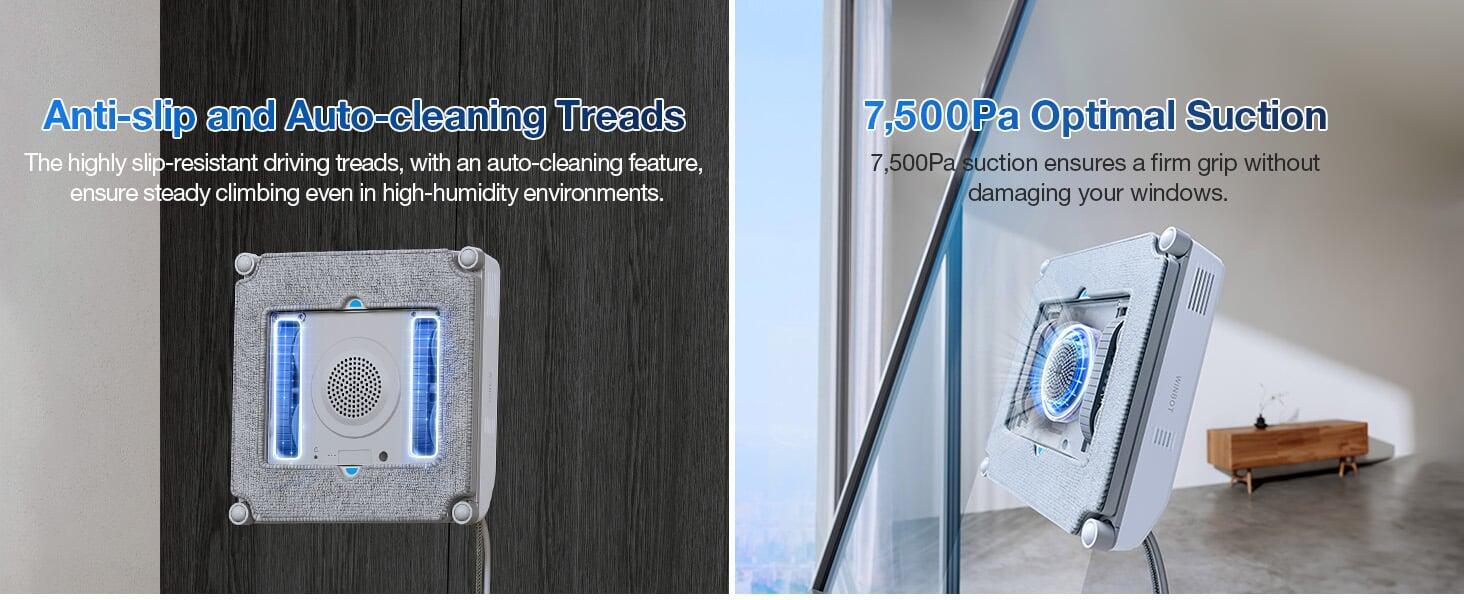

1. 7500 Pa suction power maintains a firm grip

2. Cloth design enhances stability and seal

3. Patented floating cloth plate absorbs shock and minimises friction

4. Auto air pressure compensation corrects leaks in just 0.04 seconds

5. In a power cut, the robot stays attached for over 30 minutes and sounds an alert

6. A high-strength nylon and latex safety rope (tested up to 1900N) adds backup protection

WINBOT MINI features two intelligent sensors to monitor safety in real time:

1. A gravitational acceleration sensor detects slippage and triggers an alarm

2. An optocoupler sensor identifies frameless edges within 0.02 seconds and adjusts the cleaning path immediately.
These features work together to ensure safe, uninterrupted operation.

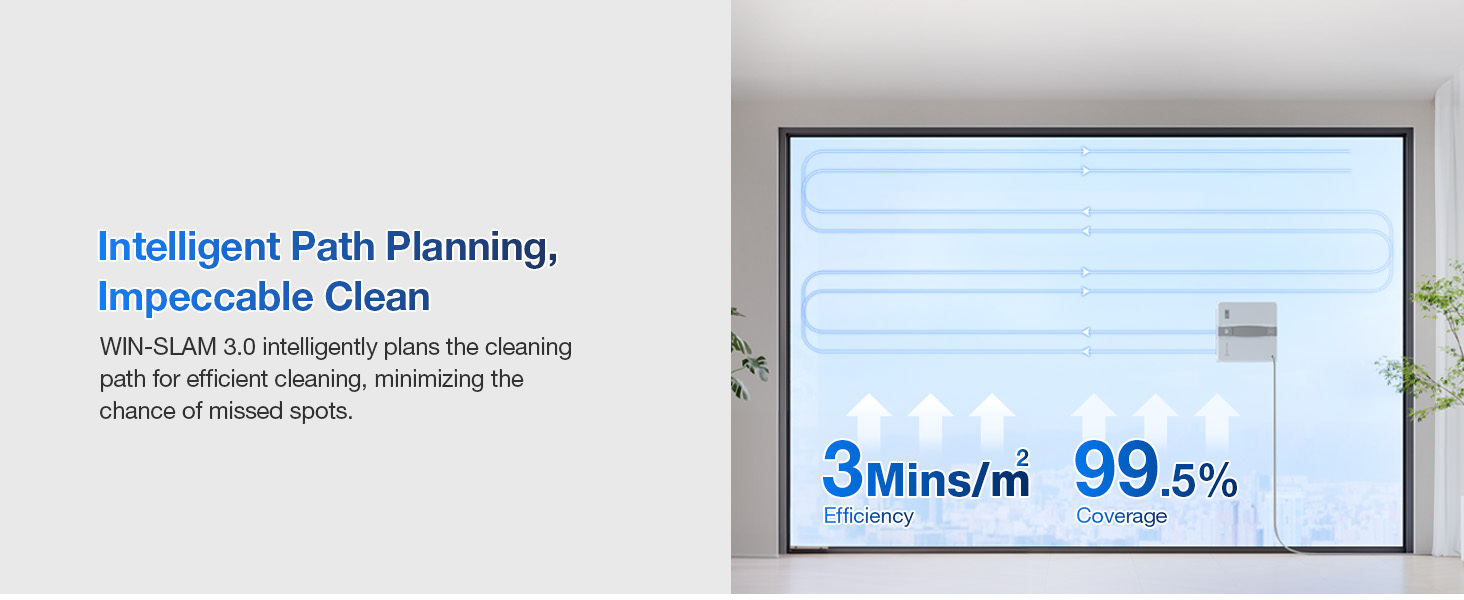

The advanced WIN-SLAM™ 3.0 algorithm intelligently plans the most efficient cleaning route.
It detects window frame boundaries, avoids obstacles taller than 4 mm, navigates objects up to 50 mm, and handles low edges and frameless glass with ease.
It ensures thorough, hands-free cleaning every time.

Choose from three versatile modes:

1. Fast Cleaning – for quick refreshes

2. Thorough Cleaning – for deep, comprehensive cleans

3. Spot Cleaning – to target specific stains or dirt patches
Whatever your needs, WINBOT MINI delivers sparkling results with minimal effort.

The ECOVACS HOME app offers intuitive control with several preset cleaning modes.
Bluetooth connectivity enables precise, four-directional manual control, making window cleaning easy, accurate, and convenient.

Path Planning Tech: WIN-SLAM™ 3.0

Min. Window Size (cm): 22 × 25

Min. Glass Thickness (mm): 3 mm

Applicable Window Type: All types of flat windows

Applicable Frame Type: With frame & frameless

APP Control: Y

Manual Control (on APP): Four directional control

OTA: Y

Power-off Protection (Y/N): Y

Auto Spray (Y/N): Y

Manual Spray (on APP): Y

Number of Spray Nozzles: 4

Method of Spray: Ultrasonic water spray

Spray Width: 8.5 cm

Spray Length (Front): 10 cm

Self-adaptive Spray Volume (Y/N): Y

Water Tank Empty Reminder (Y/N): Y

Frame Distance Detection (Y/N): Y

Water Tank Capacity (ml): 60

Max Accumulated Spray Area (Fast Mode, ㎡): 25

Intelligent Climbing System: Y

Material of Wiping Pad: Microfiber (both sides)

Water Absorption Capacity of Wiping Pad (%): 400%

Cleaning Mode: Fast Cleaning Mode / Thorough Cleaning Mode / Spot Cleaning Mode

Return to Initial Spot (Y/N): Y

Breakpoint Continuation (Y/N): Y

Frame Detection (Y/N): Y

Suction Power while Moving (Pa): 3200 Pa

Max. Suction Power (Pa): 7500 Pa

Min. Detectable Height of Obstacle (mm): 4

Min. Detectable Height of Frame (mm): 3

Voice Reminder (Y/N): Y

Dimension of WINBOT (mm, L×W×H): 215 × 215 × 55

Weight of WINBOT (kg): 1.3 ± 0.1

Type of Blower Fan: Brushless motor

Battery Life (min): Unlimited

Cleaning Efficiency in Default Mode (1×1㎡): 3 min ± 10 s (Fast Mode)

Fiber Length of Wiping Pad: 3 mm

Rated Power (W): 90 W

Rated Voltage (V): 24 V

Battery Capacity (Type, mAh): 3000 mAh

Battery Nominal Voltage (V): 3.6

Safety Battery Charging Time (H): 3

Number of Batteries: 1

Weight of Batteries (g): 55 g ± 5 g (in-built battery)

Adapter Input Parameter: 100–240V~ 50–60Hz 2.5A

Adapter Output Parameter: 24V DC 3.75A; 90 W

Power-off Protection Duration (min): 30

Length of AC Cord (m): 1.2

Length of DC Cord (m): 3.5

Total Length of Power Cable (m): 4.7 (without extension cable)

Length of Safety Rope (m): 3.3

Length of Extension Cable (m): N/A

Capacity of Cleaning Solution (ml): 230

Dimension of Wiping Pad (Length × Width, mm): 215 × 215
