WINBOT mini 2 Automated Window Cleaner - 8000Pa Suction , 30-Minute Power-Off Protection

1) Compact and Slim WINBOT

2) Adapts Flexibly to Various Narrow Window Cleaning Scenarios

3) Space-saving and Easy to Store

1) Upgraded Corner Brushes

2) Ultrasonic Atomization Spray

3) Classic Wiping Pad

1) 5-Hardware-Based Fall Protection Measures

2) 4-Stage Intelligent Fall Protection

3) Accidental Damage Insurance

1) Intelligent Obstacle Avoidance

2) Customized Cleaning Mode Choices

3) Accurate Control with Intuitive ECOVACS HOME App

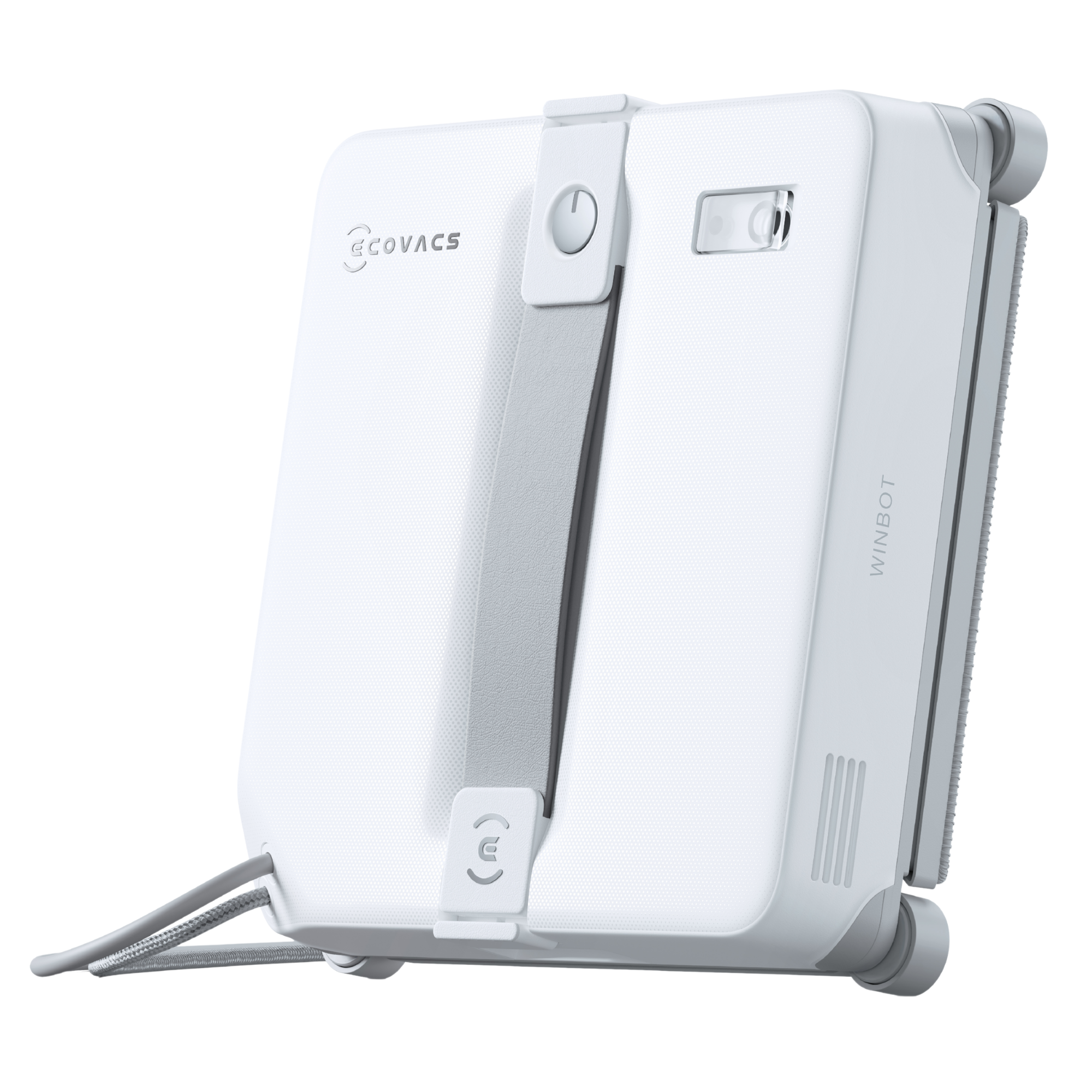

ECOVACS' Most Compact WINBOT, Effortless Cleaning for Every Corner

ECOVACS' slimmest and lightest WINBOT is engineered with a fully streamlined internal structure and refined components for efficiency; the result is an ultra-compact cleaner that effortlessly reaches narrow glass spaces and tight corners, all while delivering powerful, spotless performance.

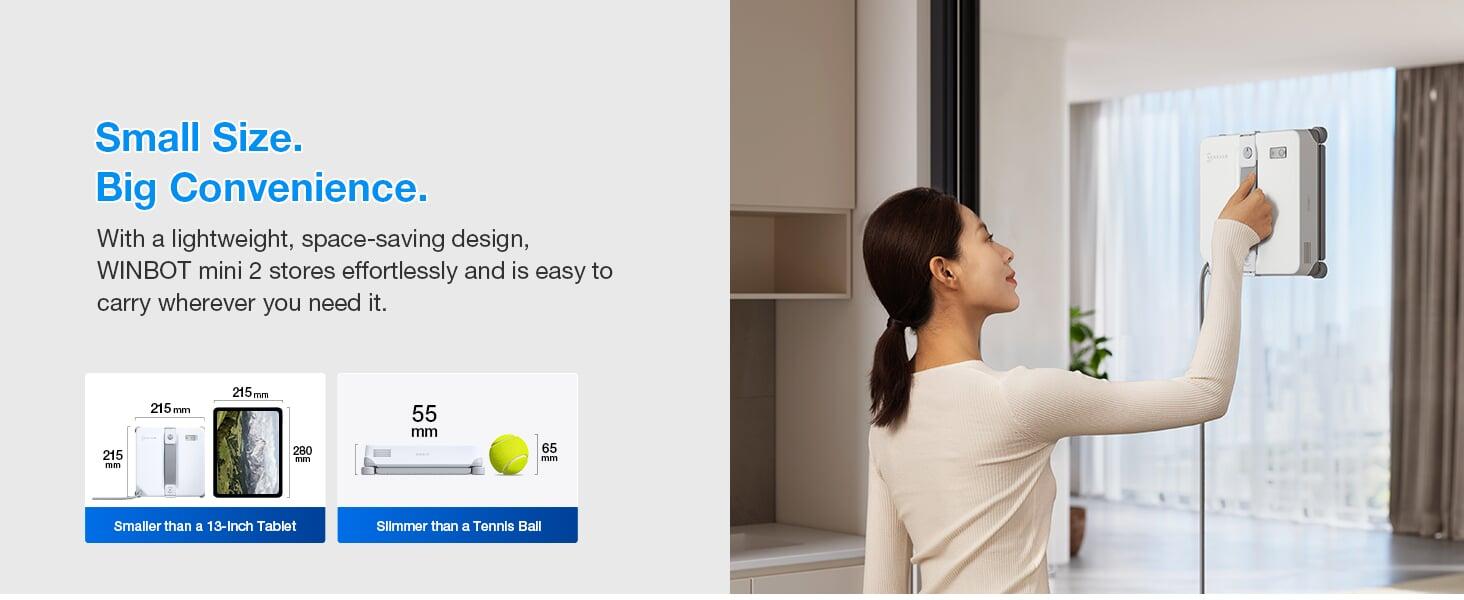

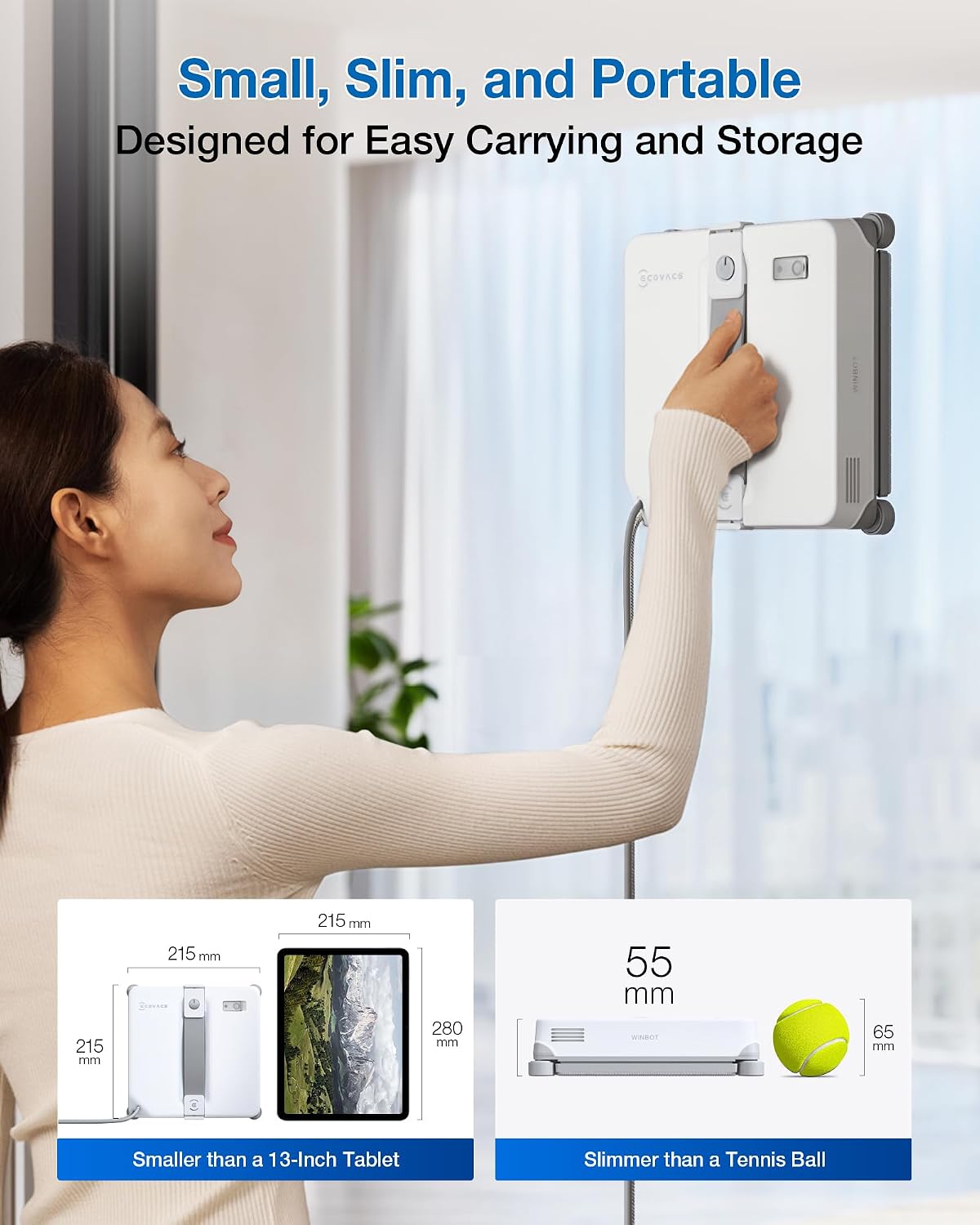

ECOVACS has re-engineered the WINBOT mini 2 with a highly integrated structure, streamlined components, and a developed compact fan, achieving a remarkably compact form without compromising performance. Measuring just 215mm in side length and 55mm thick, it is expertly engineered to clean narrow windows and hard-to-reach areas with ease

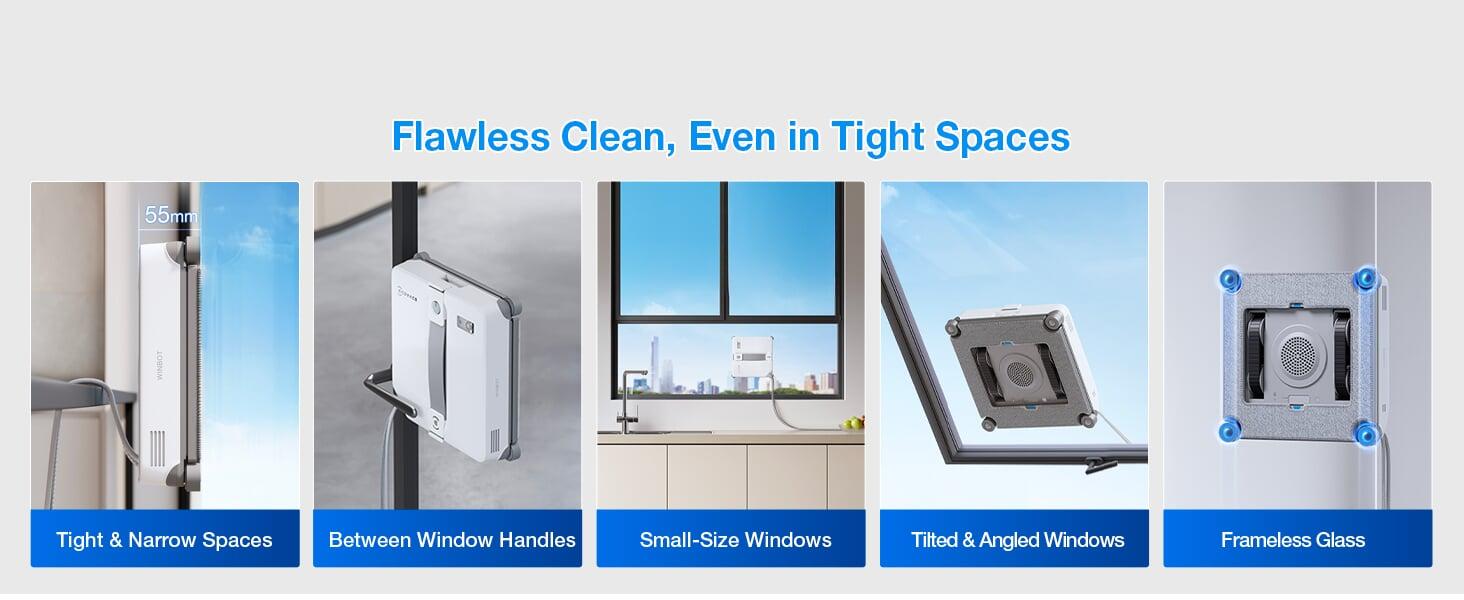

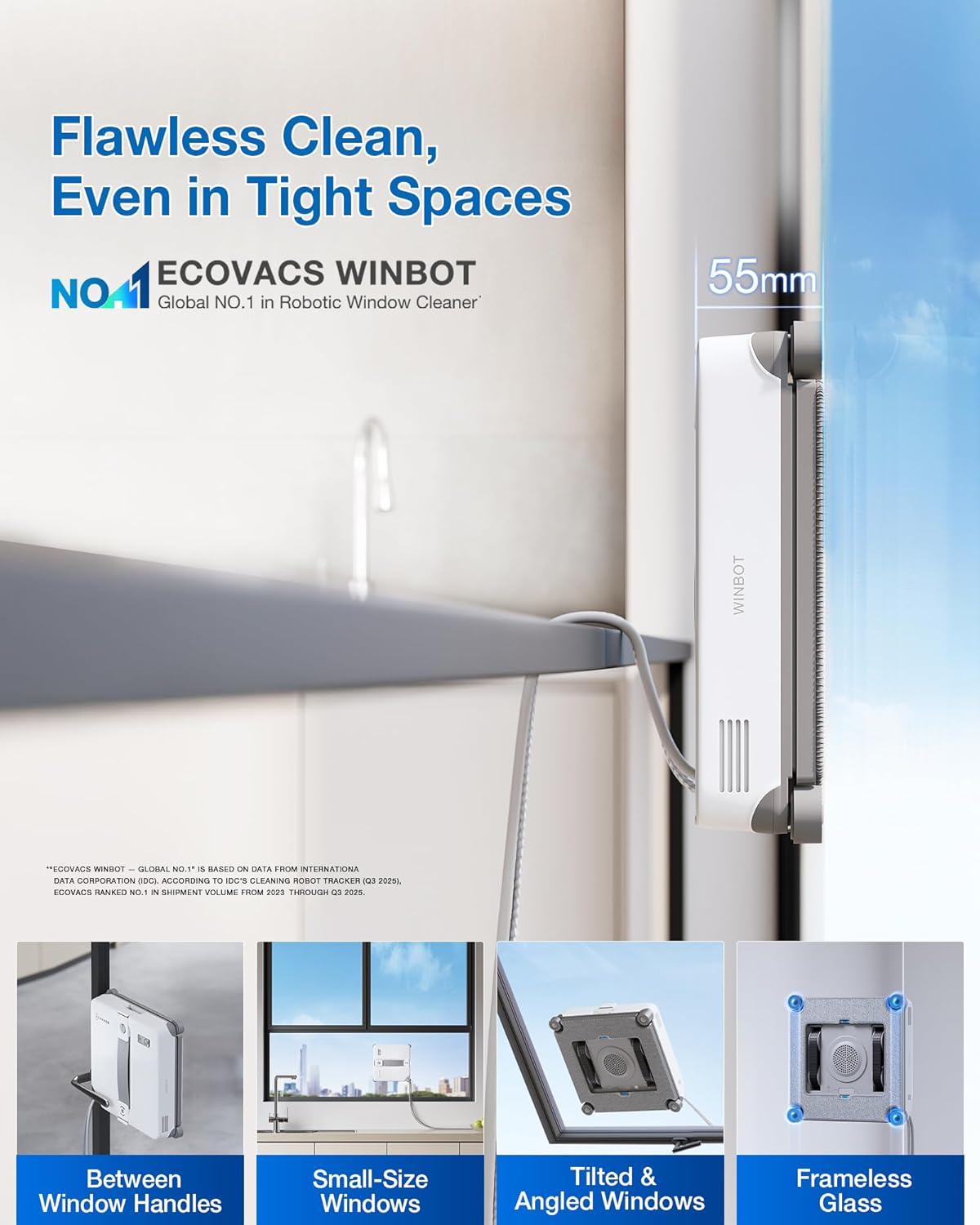

Engineered to be compact and lightweight, WINBOT mini 2 overcomes traditional cleaning limitations, allowing it to access narrow gaps and tight spaces with ease. It adapts seamlessly to a variety of window types—including frameless, floor-to-ceiling, and tilting windows—while its minimized form ensures smooth operation across complex modern structures. The result is consistent and efficient cleaning performance in a wide range of home environments.

WINBOT mini 2's compact and lightweight build allows for effortless storage. It fits neatly into any corner, helping you declutter and maximize your home space.

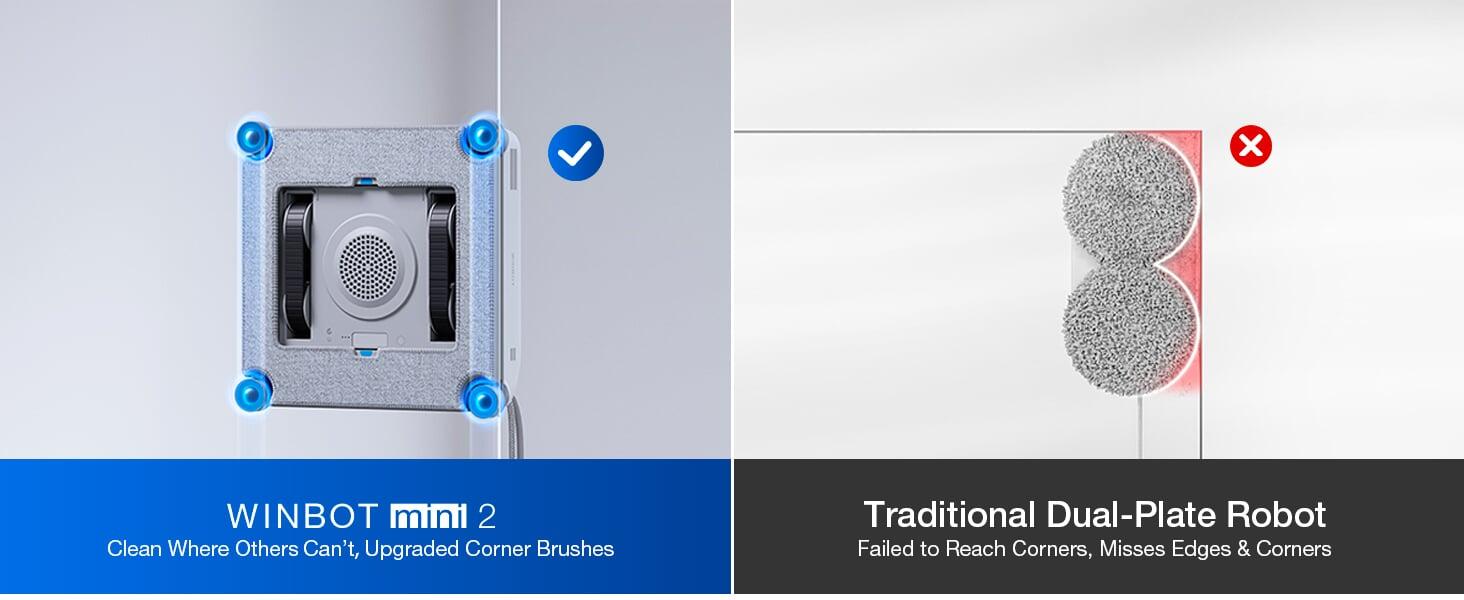

WINBOT mini 2 has upgraded the brushes on all four corners, now featuring soft bristles that achieve ultra-close edge cleaning, while working with dual-direction ultrasonic atomization to thoroughly scrub away stubborn stains at window edges. Combined with an enlarged, high-permeability wiping pad, it delivers complete cleaning coverage right up to the frame.

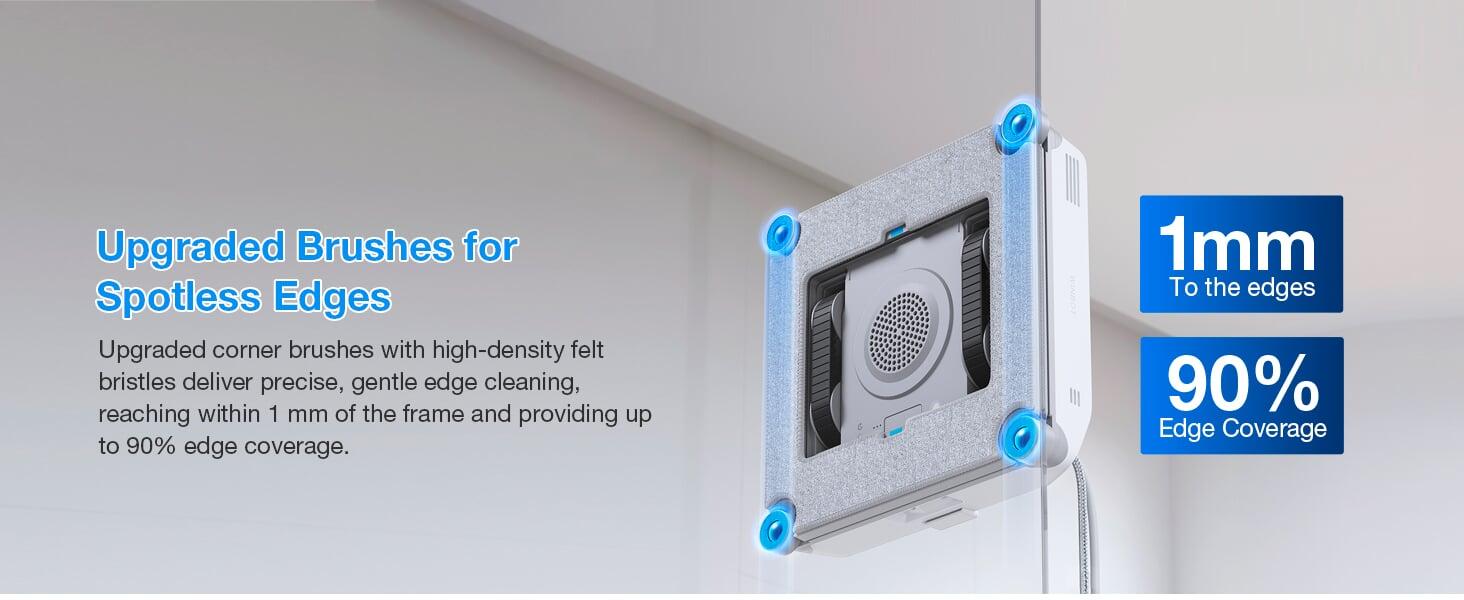

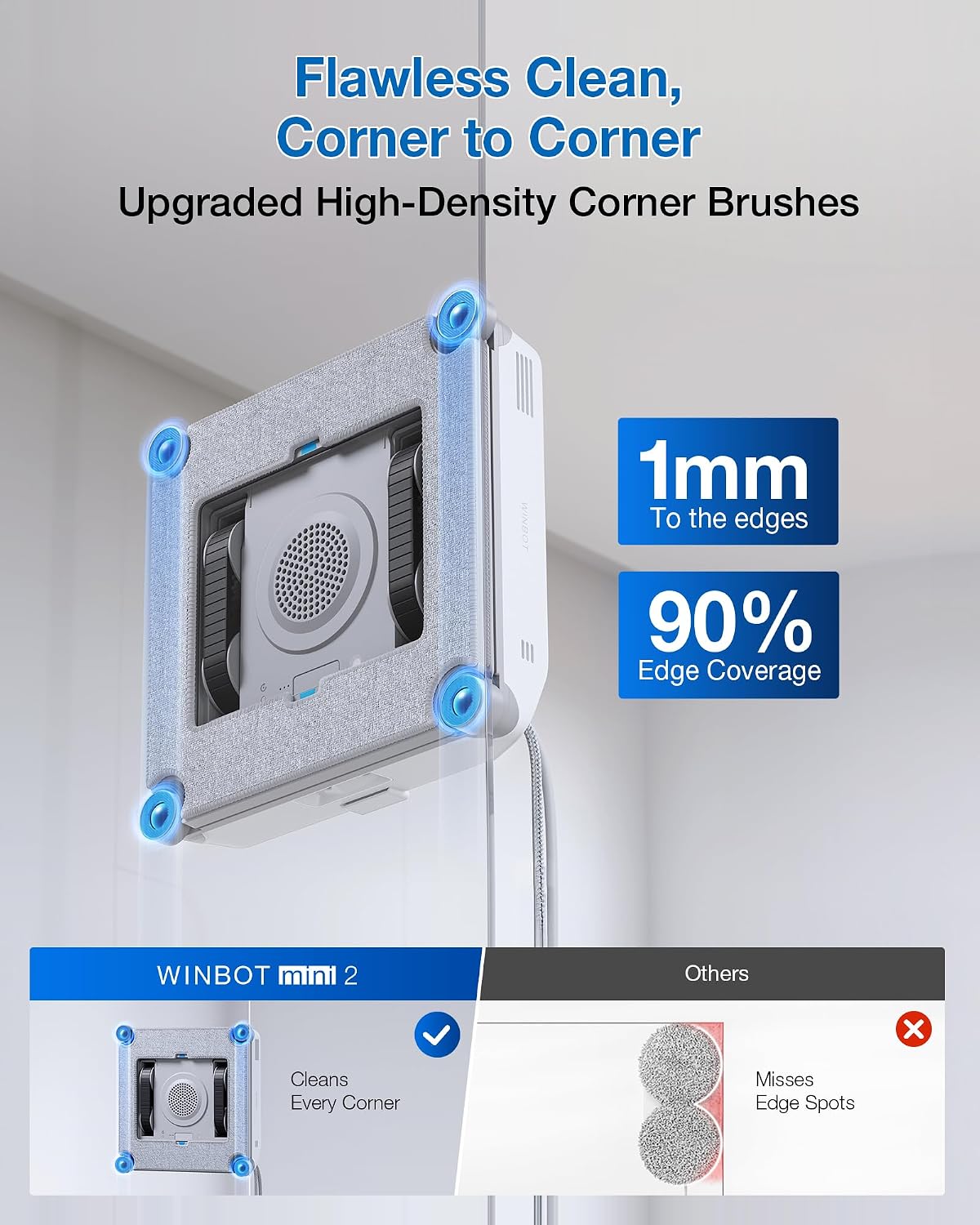

WINBOT mini 2 features upgraded brushes on all four corners, delivering extreme edge-cleaning performance that wipes to within 1 mm of the frame and leaves no dust behind. When cleaning edges, friction between the brush rim and window frame drives rotation at up to 84 RPM, while ultra-thin side wings enable precise access close to edges—achieving up to 90% edge coverage. WINBOT mini 2 features high-density felt bristles that ensure every edge is thoroughly treated with care and accuracy.

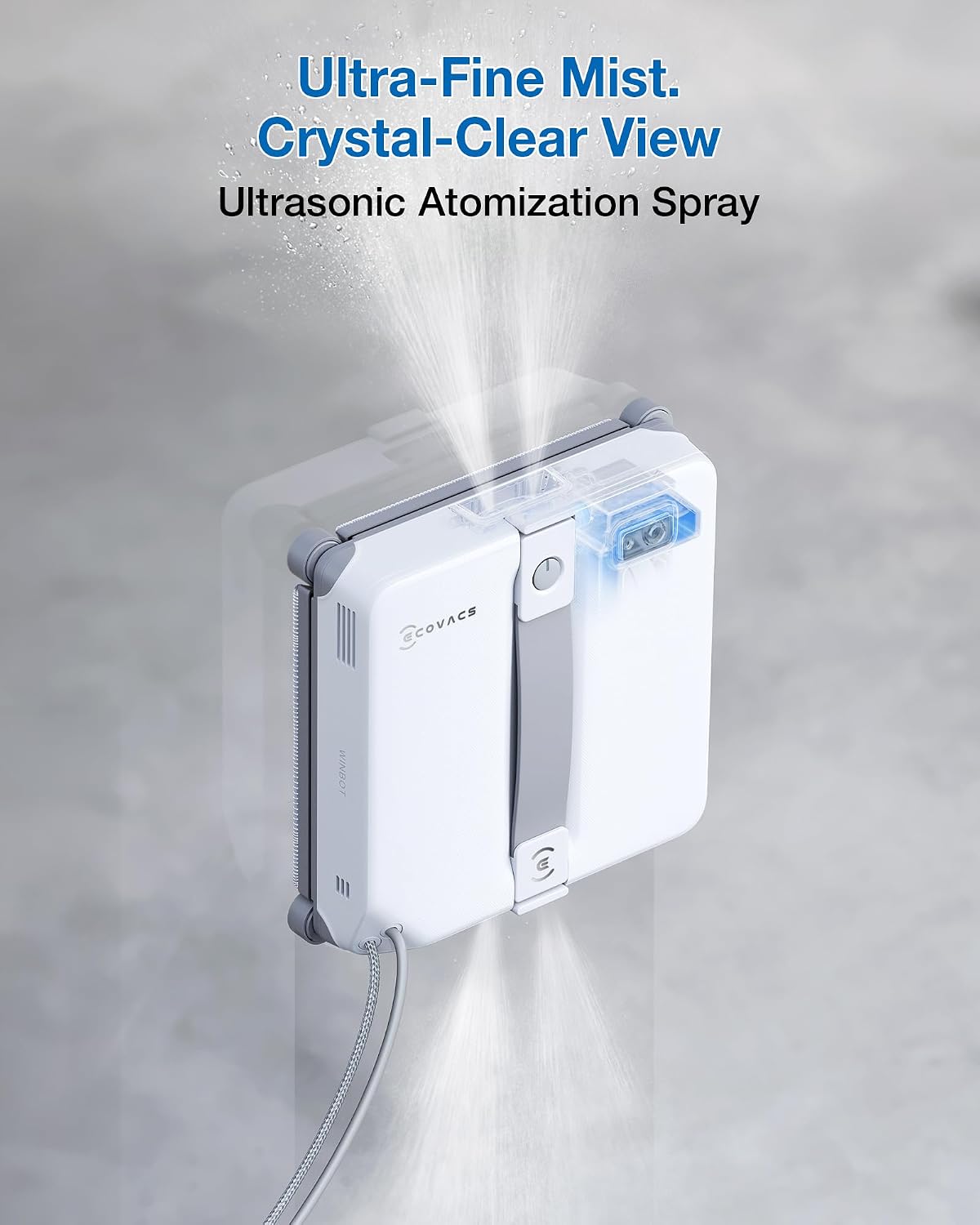

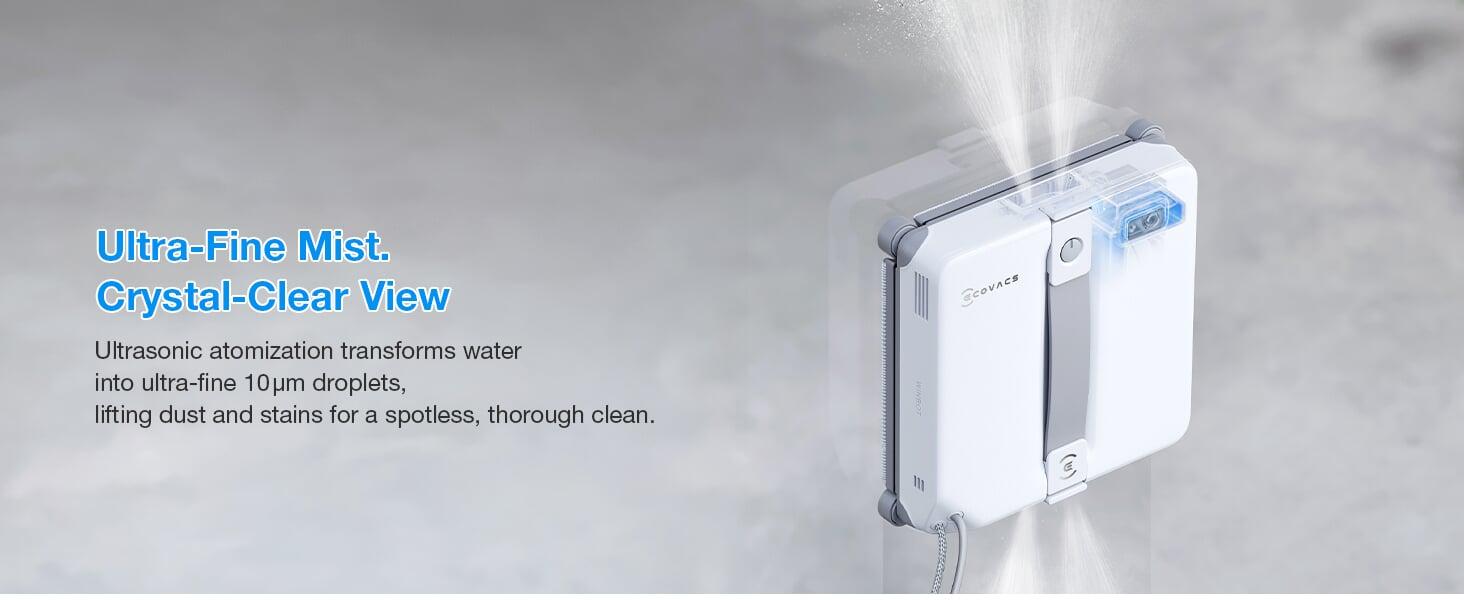

The WINBOT mini 2 features advanced ultrasonic atomization technology, which uses high-frequency vibrations to transform water into an ultra-fine mist with droplets as small as 10 micrometers. This nano-level spray wraps thoroughly around dust and stains, effectively dissolving and lifting them from the glass for a clean that’s both thorough and efficient. No spot is left behind.

The WINBOT mini 2’s classic wiping pad delivers professional-grade cleaning performance. It applies 14 N of downward force to lift stubborn stains effectively. Its ultra-fine fibers and porous structure offer high dust capacity for efficient debris capture, while superior water retention (15g capacity, up to 400% retention rate) ensures consistent moisture distribution and continuous wet mopping across the entire glass surface.

The WINBOT offers multiple layers of security, from hardware to software, and is insured with commercial insurance, providing you with comprehensive safety protection and peace of mind during window cleaning.

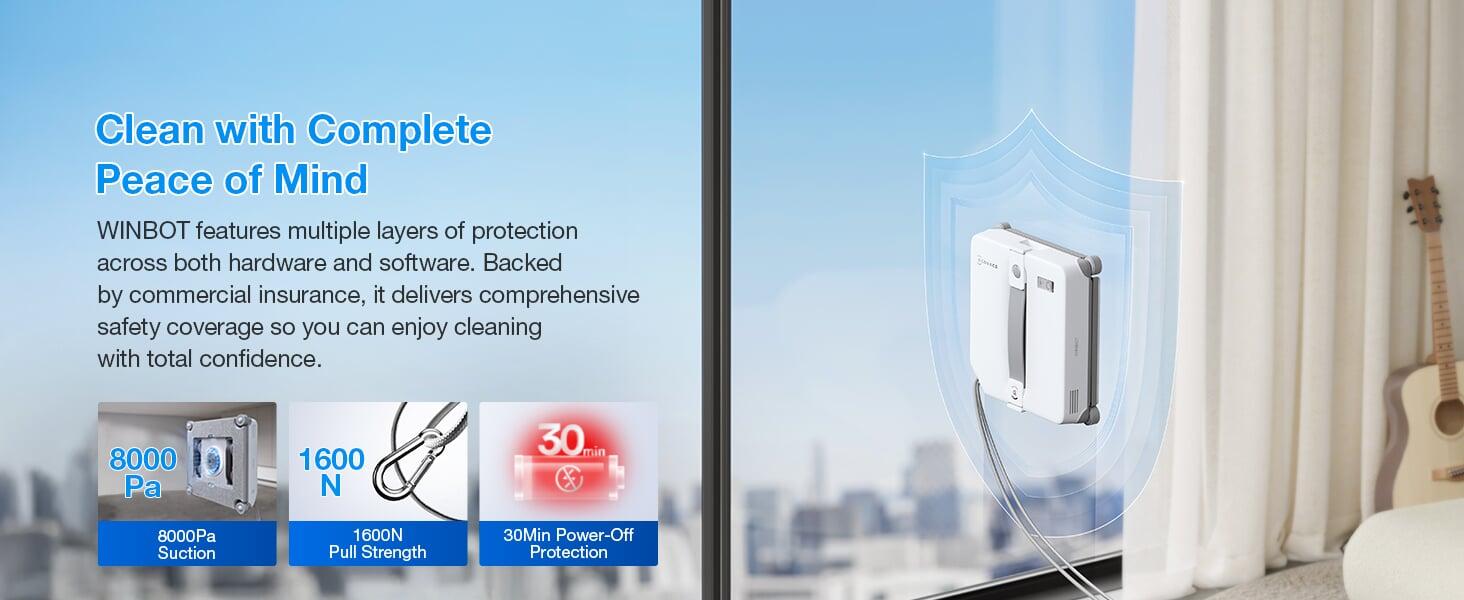

WINBOT mini 2 combines 5 layers of hardware protection to deliver for reliable and secure window cleaning. Its 8,000Pa suction power ensures strong yet glass-safe adhesion, while the classic wiping pad design offers a closer fit and enhanced seal. The floating wiping pad plate cushions against external impacts and minimizes friction. In case of low battery, power-off protection keeps the robot attached for over 30 minutes. Additionally, the included nylon + latex safety rope withstands pull forces up to 1600 N, providing extra peace of mind during high-rise operation.

WINBOT mini 2 is equipped with a 4-layer software protection system to ensure reliable and intelligent operation. A gravity acceleration sensor maintains stable positioning at all times, while an optocoupler sensor detects edges with a superfast 0.02‑second response. The robot intelligently navigates around obstacles as low as mm and escapes confined spaces with ease. Should air leakage occur, the auto air pressure compensation responds within 0.04 seconds, instantly restoring and maintaining constant suction power for continuous safe adhesion.

For even further assurance, WINBOT mini 2 is backed by insurance protection in the unlikely event damage is caused by a loss of suction.

Powered by the WIN-SLAM 4.0 algorithm, WINBOT mini 2 adapts intelligently to diverse cleaning scenarios. Multiple cleaning modes allow you to choose the perfect one based on how dirty your windows are. Smart cleaning, worry-free shine.

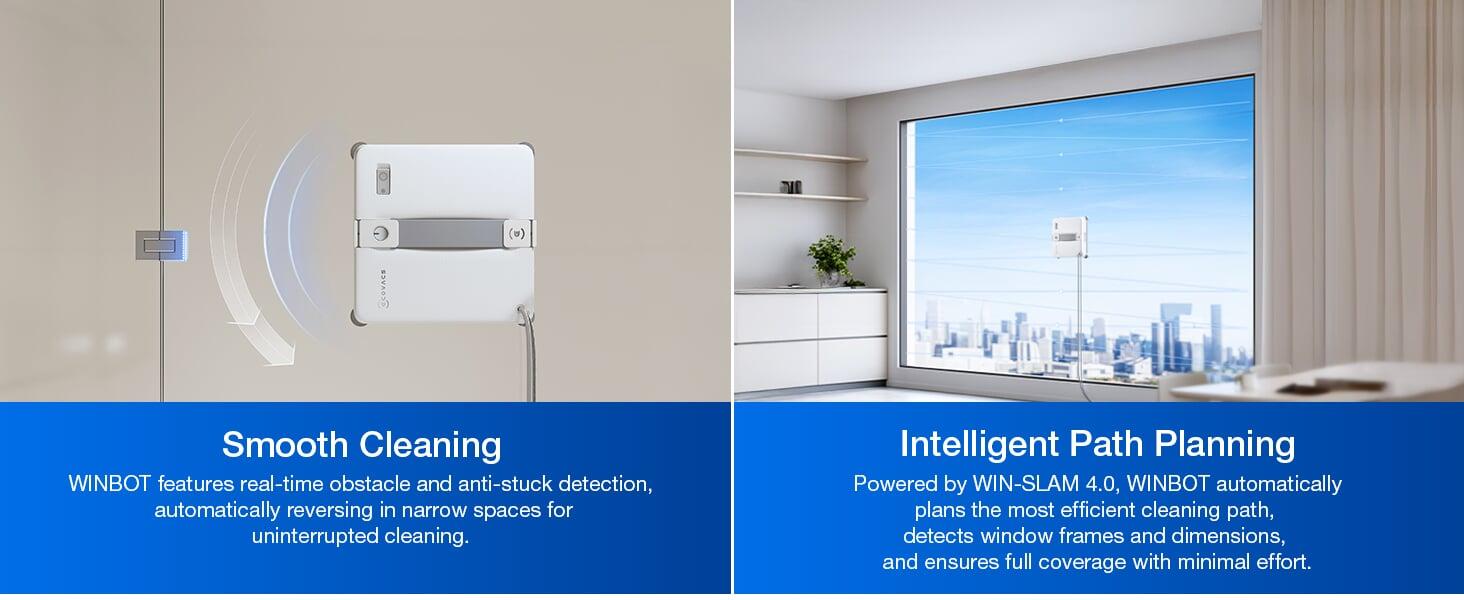

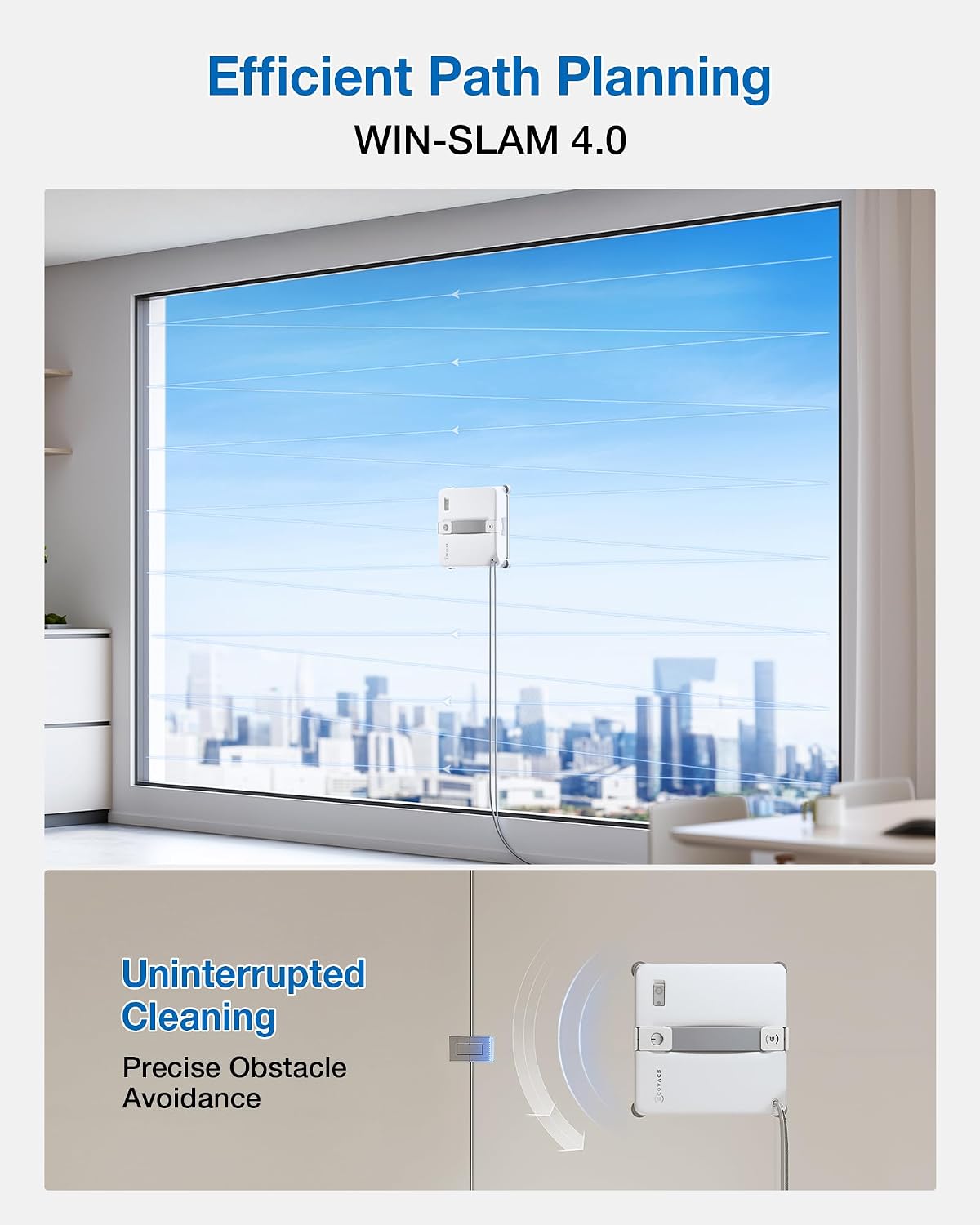

Powered by the advanced WIN-SLAM 4.0 algorithm, WINBOT mini 2 automatically plans the most efficient cleaning path, detects window frames and dimensions, and ensures full coverage with minimal effort. It features real-time obstacle and anti-stuck detection, automatically reversing in narrow spaces. Combined with raised-frame monitoring and air pressure sensing, it maintains an airtight cleaning path for consistent suction and smooth, reliable performance.

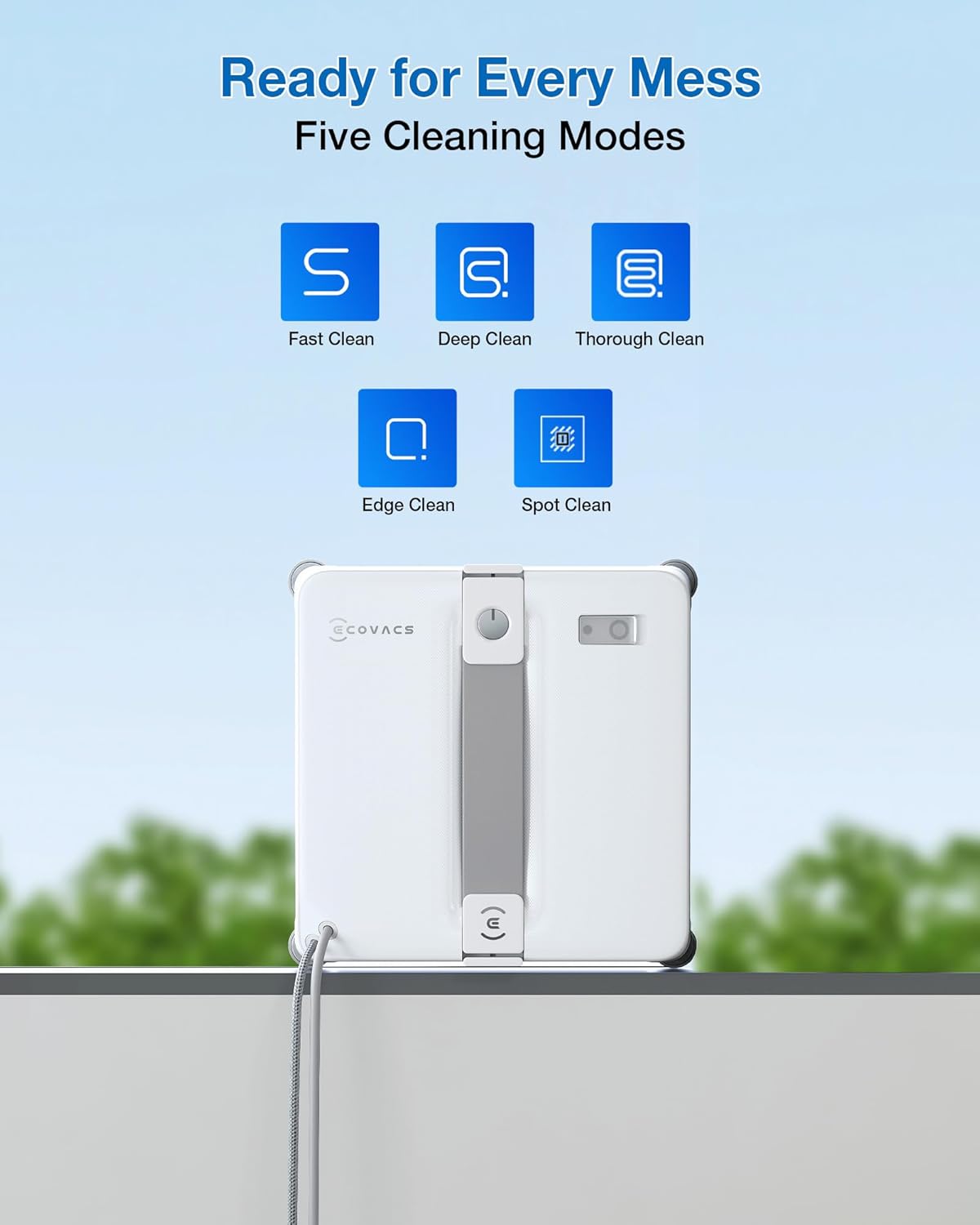

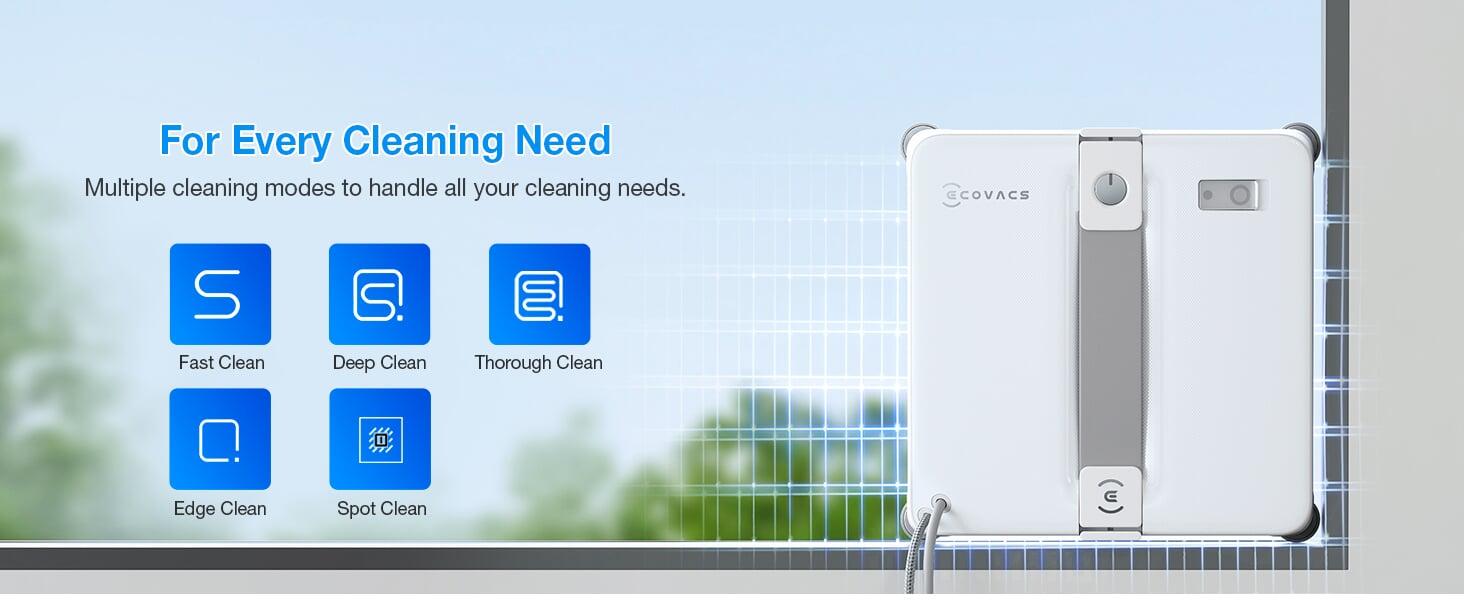

WINBOT mini 2 offers multiple cleaning modes for you to choose from. Fast Clean efficiently refreshes lightly soiled windows, while Thorough Clean tackles heavily soiled glass with powerful, comprehensive scrubbing. Spot Clean delivers precision cleaning for targeted areas, complemented by the additional options of Deep Clean and Edge Clean. You can effortlessly achieve sparkling clean windows, no matter the challenge.

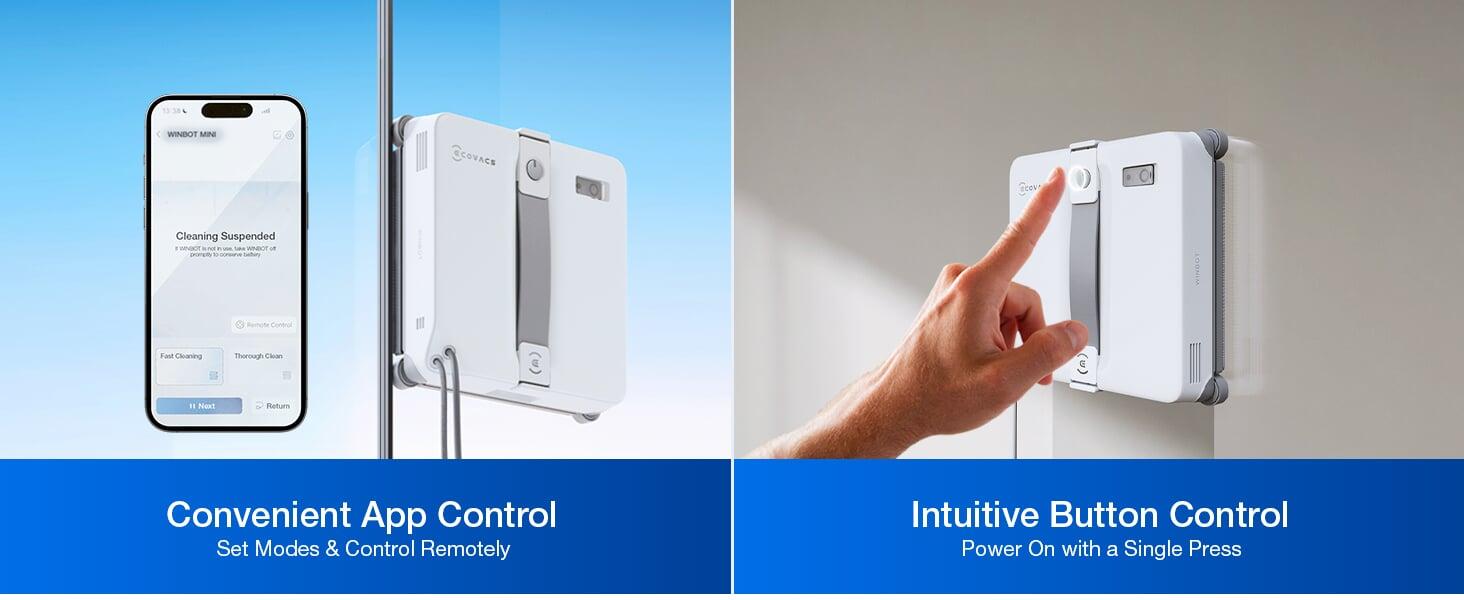

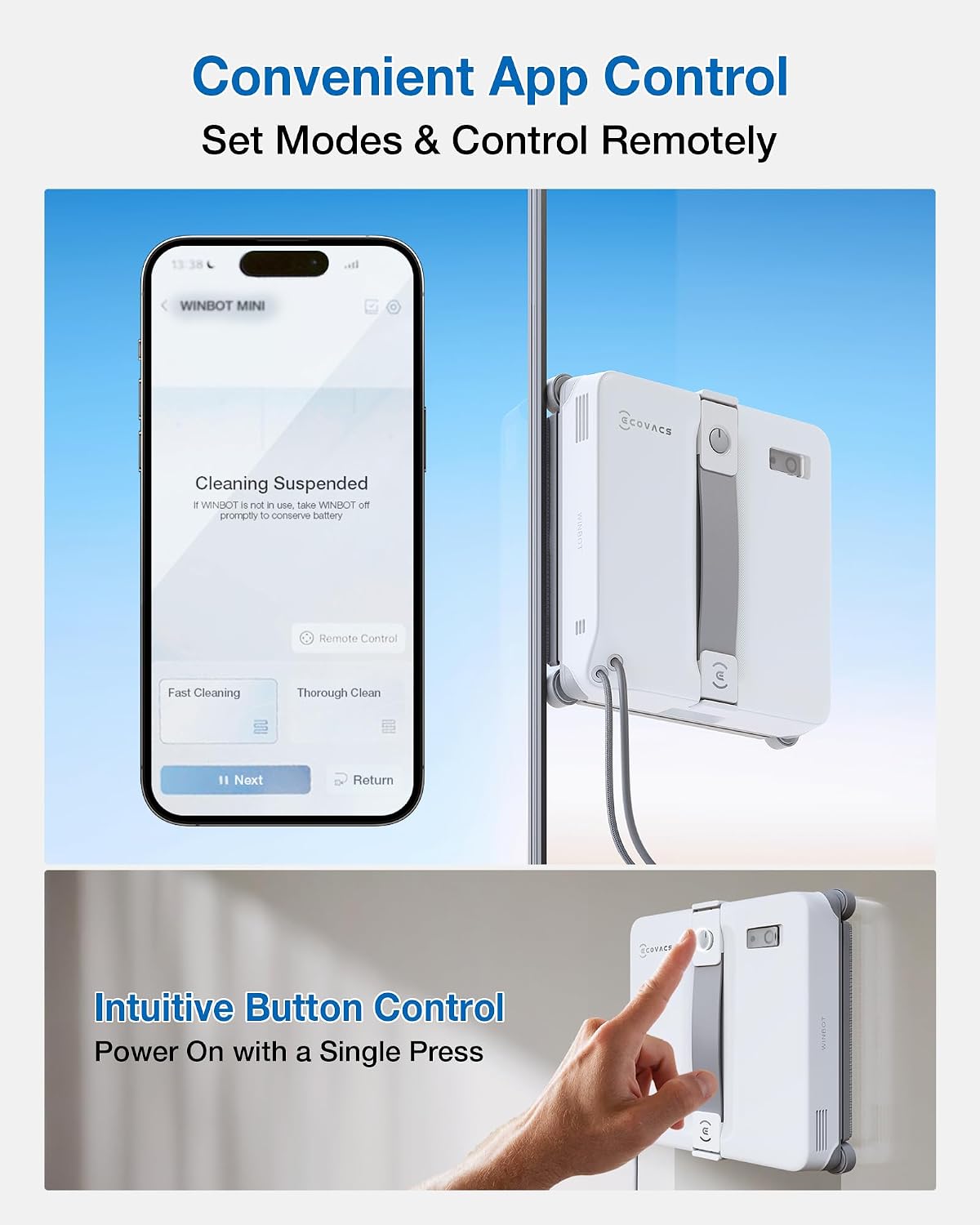

The intuitive ECOVACS HOME App comes with multiple preset cleaning modes to fit your needs. The close-range Bluetooth signal gives you four-directional remote control through the App for more accurate window cleaning.

Auto Spray (Y/N): Yes

Manual Spray (on APP): Yes

Spray Width（cm: 8.5cm

Spray Length (front)（cm): 10cm

Spray Uniformity (variance）

Max Accumulated Spray Area of Water Tank (Fast Mode, ㎡）: 30（㎡）

Spray Width: 8.5cm

Method of Spray: Ultrasonic Water Spray

Self-adaptive Spray Volume (Y/N): Yes

Number of Spray Nozzles: 4

Material of Wiping Pad: Micorfiber（both sides）

Water Tank Empty Reminding (Y/N): Yes

Frame Distance Detection (Y/N): Yes

Water Tank Capacity（ml): 50±5(ml）

Min. Glass Thickness (mm):3mm

Length of Safety Rope (m): 3.3(m)

Length of Extension Cord (m): N/A

Cleaning Solution (ml): 230(ml)

Cleaning Cloth Size (m㎡): 215*214(m㎡)

Split Drive Tech (Y/N): No

Intelligent Climbing System: Yes

Type of Blower Fan: Brushless Motor

Suction Power while moving（Pa): 3400 Pa

Max. Suction Power（Pa): 8000 Pa

Cleaning Efficiency in Default Mode (1X1㎡):

2min30s±10s（Fast Mode）

Path Planning Tech: WIN-SLAM 4.0

Cleaning Mode: Fast Cleaning Mode Deep Cleaning Mode Thorough Cleaning Mode Edge Cleaning Mode Spot Cleaning Mode Edge Mode Remote Mode

Return to Initial Spot(Y/N):Yes

Min. Detectable Height of Obstacle（mm):2mm

Min. Detectable Height of Frame（mm):1mm

Frame Detection (Y/N): Yes

Breakpoint Continuation (Y/N): Yes

APP Control: Yes

Manual Control (on APP): Four directional control

Min. Window Size (cm): 25*25(cm)

Applicable Window Type: all types of flat windows

Applicable Frame Type: with Frame & Frameless

Min. Glass Thickness (mm): 3mm

Dimension of WINBOT(mm, L*W*H): 215*215*55

Battteries Capacity (Type, mAh): Lithium 3000mah

Battery Nominal Voltage (V): 3.6 (V)

Typle of Blower Fan: Brushless Motor

Power-off Protection Duration (min): 30 (min)

Battteries Capacity (Type, mAh): Lithium 3000mah

Weight of WINBOT (kg): 1.3±0.1 (kg)

Weight of Batteries (g): 55g±5g（(in-built battery)

Number of Batteries: 1

Rated Power (W): 66W

Safety Battery Charging Time (H): 3 （H)

Rated Voltage (V): 24V

Charging Time (H): 3（H )

Cleaning Efficiency in Default Mode (1X1㎡): 2min30s±10s（Fast Mode）

Battery Life (min): unlimited

Dimension of Wiping Pad (LengthxWidth mm):

215*214 (mm)

Total Lenght of Power Cable（m): 4.7（m）

Length of DC cord (m): 3.5 (m)

Length of AC cord (m): 1.2(m)

Length of Backup Safety Rope (m): 3.3 (m)

Capacity of Cleaning Solution (ml): 230 (ml)

Filling Nozzle (Y/N): No

Net Weight of inner items (kg): 2.1 (kg)

Net Weight (Kg): 2.1 (Kg)

Gross Weight of Packaging (Kg): 2.88 (Kg)

Gross Weight (Kg): 2.8 (Kg)

Dimension of inner box (mm, L*W*H): 420*255*85 (mm)

Gross Weight of inner items (kg): NA

1 x User Manual

1 x Cleaning solution

2 x Wiping Pad

1 x Carabiner

1 x Safety Rope

1 x WINBOT

1 x Power Adapter
