MAIN FEATURES:
Uncover a truly spotless, panoramic view. Driven by TruEdge tech and 200 RPM high-speed pads, WINBOT W2S OMNI reaches within 0.04 in of window edges, delivering professional precision where others miss.
Navigate uneven frames with ease.
The robot intelligently detects edges, lowering the pads for deep scrubbing and lifting them for smooth, fast transitions—eliminating the need for repeated passes.

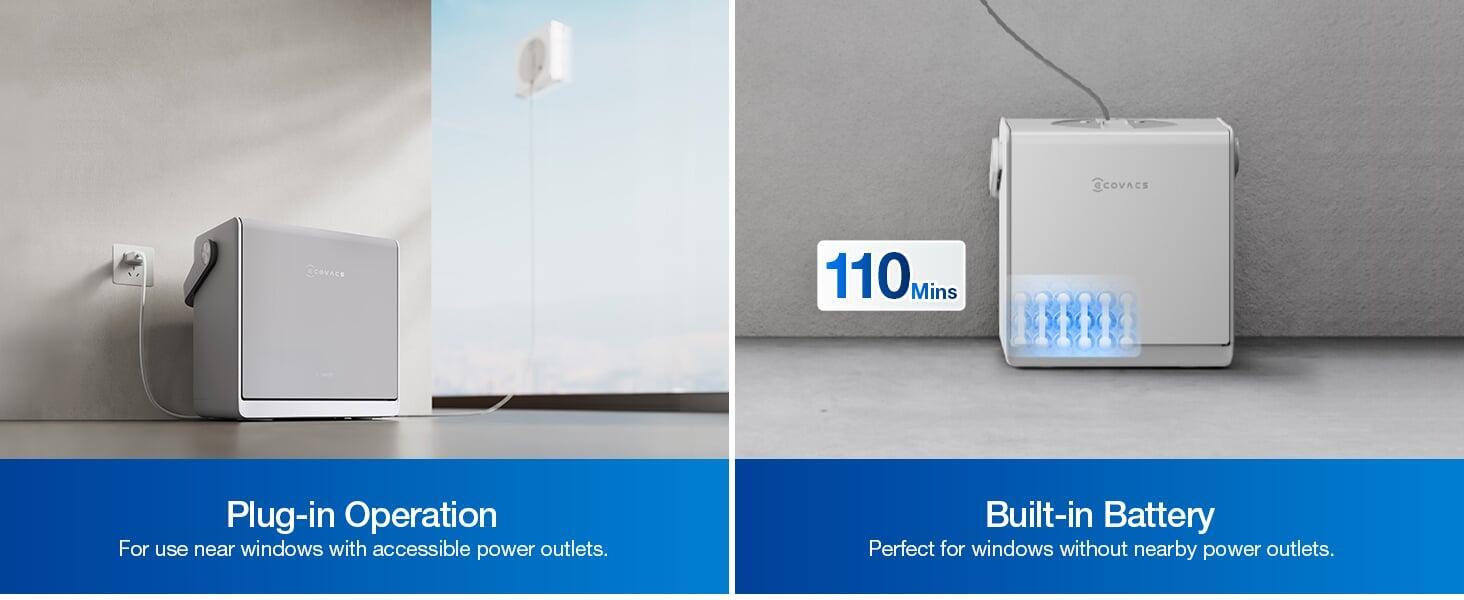

Switch to Cordless Mode for 110 minutes of freedom on balconies and hard-to-reach areas, or use Wired Mode for non-stop, high-coverage cleaning.
Tough dirt is now history. Our upgraded 3-nozzle system boosts water pressure by 100% and spray duration by 90%, instantly atomizing to erase dried stains in a single, powerful pass.
Clean anywhere, regardless of outlet locations.

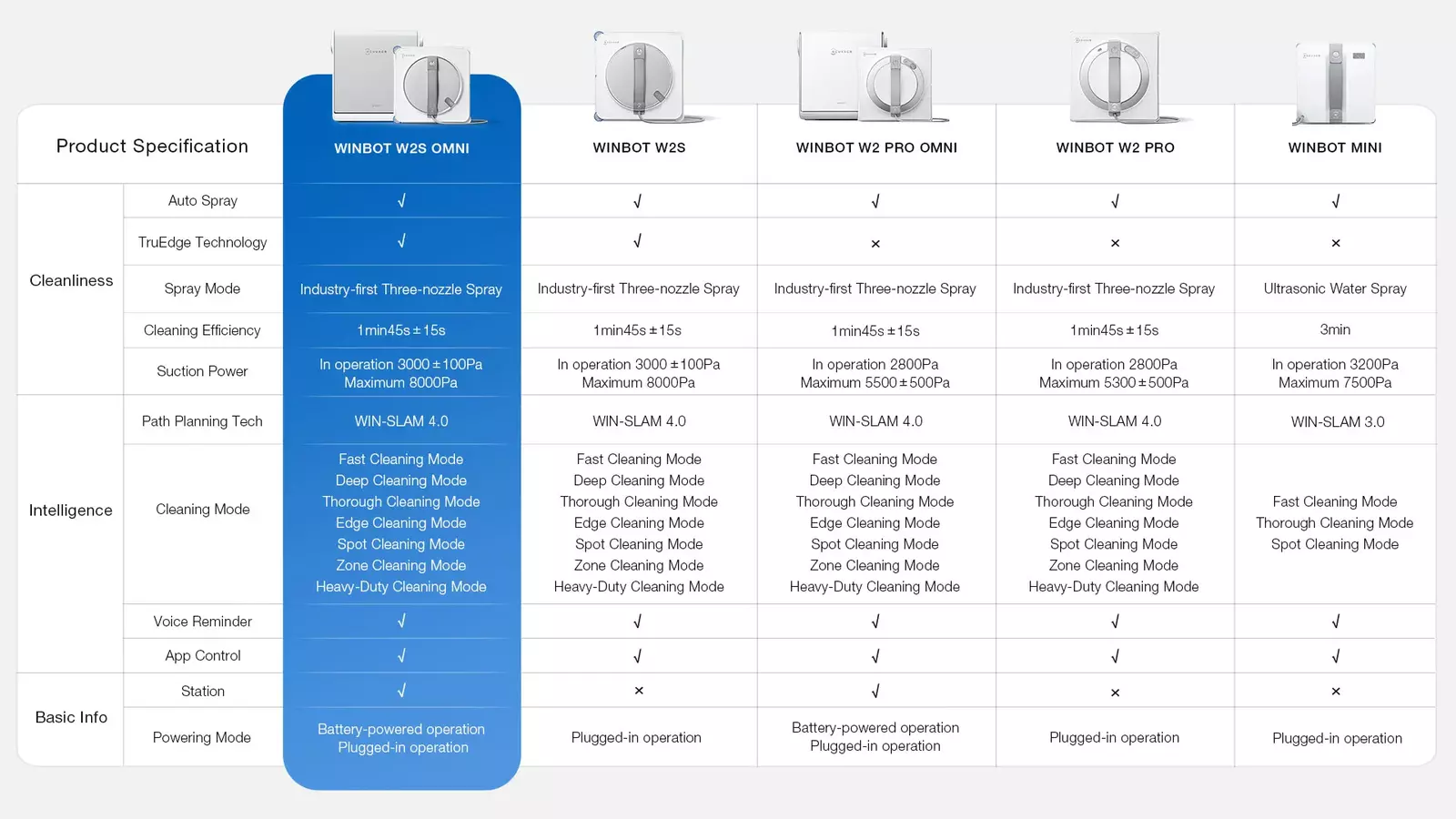

SPECIFICATIONS:
Minimum Window Size: 11.81*15.75 (in)
Applicable Window: All types of flat windows
Auto Spray (Y/N): Yes
Manual Spray (on APP): Yes
Spray Width（cm): Beyond the edge ≤1cm
Spray Length (front)（cm): ≤30
Spray Uniformity (variance: ≤0.5
Ratio of Spray Coverage: ≥70%
Max Accumulated Spray Area of Water Tank（Fast Mode, ㎡): 40±3
Method of Spray: with plastic nozzles
Self-adaptive Spray Volume (Y/N): Yes
Number of Spray Nozzles: 6
Material of Wiping Pad: Microfiber (both sides）
Water Tank Empty Reminding (Y/N): Yes
Frame Distance Detection (Y/N): Yes
Water Tank Capacity(ml): 60±5
Cleaning Mode: Fast Cleaning Mode, Deep Cleaning Mode, Thorough Cleaning Mode, Edge Cleaning Mode, Spot Cleaning Mode, Zone Cleaning Mode, Heavy-Duty Cleaning Mode
Intelligent Route Planning: Yes
Power-off protection: Yes
Auto Back to Start Point: Yes
Voice Report: Yes
Length of Power cord (m): 5.5
Length of Safety Rope (m): 1
Length of Extension Cord (m): No
Cleaning Solution (ml): No
Cleaning Cloth Size (m㎡): 260mm*251mm
Robot Size (mm)(l/w/h): 271*271*77
Weight of Robot (kg): 1.6±0.1
Station Dimension (mm)(l/w/h): 312*215*327
Weight of Station (kg): 5.5±0.2
Working Time per Charge (min): 110min±10%
Charging Time (H): ≤3h
Working Speed (min/㎡): 1min45s±15s（Fast Mode）
Battery Specifications (Type, mAh): Lithium 4500mah
Battery Voltage(V): 24
Battery Weight (g): ≈1330
Power off protection time（Full charge: 30min
Gross Weight of Carton Box (Kg): 8.5
Size of Carton Box (mm)(l/h/w): 380*297*406
Split Drive Tech (Y/N): No
Intelligent Climbing System: Yes
Type of Blower Fan: Brushless Motor
Suction Power while moving（Pa): 2800
Max. Suction Power（Pa): 5500±500
Cleaning Efficiency in Default Mode (1X1㎡): 1min45s±15s（Fast Mode）
Path Planning Tech :WIN-SLAM 4.0
Cleaning Mode: Fast Cleaning Mode Deep Cleaning Mode Thorough Cleaning Mode Edge Cleaning Mode Spot Cleaning Mode Zone Cleaning Mode Heavy-Duty Cleaning Mode
Return to Initial Spot(Y/N): Yes
Min. Detectable Height of Obstacle（mm): 4
Min. Detectable Height of Frame（mm): 2
Frame Detection (Y/N): Yes
Breakpoint Continuation (Y/N): Yes
APP Control: Yes
Manual Control (on APP): Omnidirectional remote control
Min. Window Size (cm): 30*40
Applicable Window Type: all types of flat windows
Applicable Frame Type: with Frame & Frameless
Min. Glass Thickness (mm): 3
Dimension of WINBOT(mm, L*W*H): 271*271*77
Weight of WINBOT (kg): 1.6±0.1
Auto Take-up Rope (Y/N): Yes
Speed Control of Take-up (Y/N): Yes
Load Detection of Take-up (Y/N): Yes
Compound Cable (Y/N): Yes
Length of DC cord (m): 5.5
Auto releasing cord with low resistance(Y/N): Yes
Safety lock for releasing cord (Y/N): Yes
Power-off Protection (Y/N): Yes
Power-off Protection Duration (min): 30
Auto return in low battery status (Y/N): Yes
Auto take-up in low battery status (Y/N): Yes
Extra Weight for Protection (Y/N): Yes
Weight of Station（kg): 5.5±0.2
Suction Cup (Y/N): Yes
El control of Suction Cup(Y/N): Yes
Max. Adsorption Power（N): ≥800
Dimension of WINBOT(mm, L*W*H): 271*271*77
Batteries Capacity (Type, mAh): Lithium 4500mAh
Battery Nominal Voltage (V): 24
Type of Blower Fan: Brushless Motor
Batteries Capacity (Type, mAh): 98.55
Weight of WINBOT (kg): 1.6±0.1
Weight of Batteries (g): ca. 1330
Number of Batteries: 12
Rated Power (W): 126
Powering Mode: Battery-powered operation /Plugged-in operation
Rated Voltage (V): 24
Charging Time (H): ≤3
Cleaning Efficiency in Default Mode (1X1㎡): 1min45s±15s（Fast Mode）
Battery Life (min): 110min±10%
One-time Working Area in Fast Cleaning Mode（㎡): ca. 55㎡
One-time Working Area in Deep Cleaning Mode（㎡): ca. 22㎡
Control Panel (Y/N): Yes
One-key Switch on & off (Y/N): Yes
One-key Return (Y/N): Yes
Voice Reminder (Y/N): Yes
Dimension of Wiping Pad (LengthxWidth mm): 260*251
Support OTA Upgrade (Y/N): Yes
Length of DC cord (m): 5.5
Length of AC cord (m): 1.8
Length of Backup Safety Rope (m): 1
Filling Nozzle (Y/N): Yes
Net Weight (Kg): 7.2
Gross Weight (Kg): 8.5
Dimension of Packaging (mm, L*W*H): 380*297*406
WHAT'S IN THE BOX:
1 x Station
1 x Safety Rope
1 x Carabiner
2 x Wiping Pad
1 x Cleaning Solution
1 x User Manual
